Land Rover Defender TD5 Engine: Complete Guide to Specs, History, Issues & Upgrades

The TD5 Engine: Powering Land Rover Into the Modern Era

At Landroid Motors, we’ve always admired the iconic TD5 engine, a true turning point in Land Rover’s evolution. More than just a robust diesel unit, the TD5 marked the company’s transition into a new era of engineering, blending classic Defender durability with modern performance and emissions compliance.

Introduced in the late 1990s, this five-cylinder powerhouse helped redefine what a Land Rover could be: tough, responsive, and forward-thinking. But how does it hold up today, and what do you need to know to keep it running perfectly?

The Birth of Project Storm & BMW’s Influence

Development of the TD5 began in 1993 under Project Storm, Land Rover’s in-house programme to create a modular family of 4, 5, and 6-cylinder diesel engines to replace the aging 200Tdi, 300Tdi, and L-Series powerplants. Engineers conducted a global analysis of diesel engine technology, combining insights from rivals with Land Rover’s own experience.

When BMW acquired Rover Group in 1994, they inherited the nearly completed Project Storm. BMW chose to greenlight only the five-cylinder variant for Land Rover, cancelling the 4 and 6-cylinder versions to streamline production and focus on 4×4 applications. Although development began in 1993, the TD5 didn't enter full production until late 1998, launching first in the Discovery Series II, followed by the Defender in January 1999.

TD5 Engine During a Landroid Restoration

TD5 vs 300Tdi vs 200Tdi: How Do They Compare?

The transition to the TD5 was a massive leap. While the 200Tdi and 300Tdi are legendary for their mechanical simplicity and ease of field-repairs, the TD5 brought modern electronic management into the mix. Compared directly to the 300Tdi, the TD5 offered 9% more power and 13% more torque, significantly reducing emissions and vastly improving driveability.

Feature	TD5	300Tdi	200Tdi
Production Years	1998–2006	1994–1998	1989–1994
Cylinders	5 (Inline)	4 (Inline)	4 (Inline)
Displacement	2.5 Litres	2.5 Litres	2.5 Litres
Power (Defender)	122 hp	111 hp	107 hp
Torque	300 Nm (221 lb-ft)	265 Nm (195 lb-ft)	255 Nm (188 lb-ft)
Fuel Injection	Electronic Unit Injectors	Mechanical Bosch VE	Mechanical Bosch VE
Engine Management	"Thunder" ECU	Fully Mechanical	Fully Mechanical

Key Innovations of the TD5 Engine

The result of Project Storm was a completely new, emissions-conscious engine platform built for heavy-duty terrain and long-term reliability.

• Electronic Unit Injectors (EUI): High-pressure camshaft-driven injectors operating at a massive 1500 bar for precision fuel delivery and cleaner emissions.

• "Thunder" ECU: The first Land Rover diesel fully managed by an ECU, controlling everything from fuel injection to traction and ABS integration.

• Cyclone Oil Separator: A five-stage system in the cam cover that filtered oil mist, allowing for longer 12,000-mile oil change intervals.

• Robust Architecture: Cast iron block, aluminium head, dual chain-driven camshafts, and ladder-frame construction.

• Emission Controls: Initially clean enough for EU2 without a catalytic converter; later updated for EU3 with EGR cooling and a catalyst.

💡 TD5 Misfiring, Leaking Fuel, or Losing Power?

Avoid throwing expensive parts at the problem. Bring your Defender to Exeter’s independent Land Rover specialists for precise Nanocom diagnostics and expert repairs. Book a TD5 Health Check at Landroid Motors →

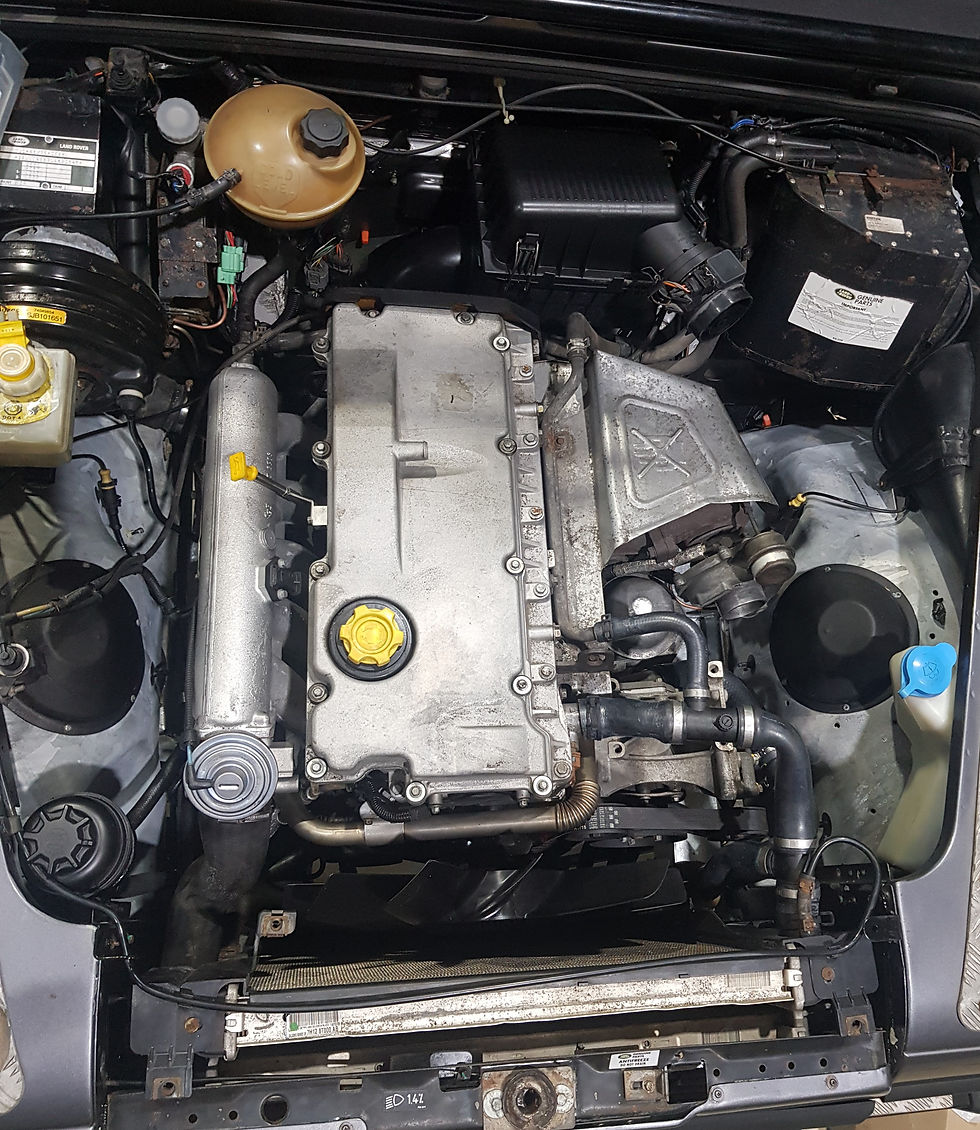

TD5 Defender engine bay

The Downsides: Known TD5 Issues & Trade-Offs

While the TD5 is highly regarded as one of the best engines Land Rover ever produced, its introduction of electronics brought specific quirks that owners must look out for today:

1. Oil in the Injector Harness: The most famous TD5 fault. Engine oil can bypass the injector loom seals under the rocker cover. Capillary action draws the oil all the way down the wiring loom and into the red plug of the ECU under the seat. This causes severe misfires and rough running.

2. Fuel Pressure Regulator (FPR) Leaks: Located at the rear of the engine block on the driver's side, the O-rings in the FPR often fail, resulting in a visible diesel leak down the side of the bell housing.

3. Warped Exhaust Manifolds: Because the TD5 runs hot under heavy load (especially when remapped), the exhaust manifold can warp. This often snaps the outer manifold studs, resulting in a high-pitched whistling or screeching noise under acceleration.

4. 10P vs. 15P Engine Variations: Early TD5s (Engine code 10P) used plastic cylinder head dowels that could fail, leading to head gasket issues. Later engines (15P, introduced in 2001) upgraded to steel dowels, though they can occasionally suffer from internal fuel leaks inside the cylinder head.




Common Oil and Service Specs

Maintaining a TD5 requires specific servicing routines. Crucially, the TD5 features two oil filters.

• Engine oil: Fully synthetic 5W-40 or 5W-30 (Meeting ACEA A1/B1 or A3/B3).

• Capacity: ~7.2 litres.

• Filters: Standard spin-on filter AND a centrifugal rotor filter (both must be changed).

• Change interval: Land Rover recommended 12,000 miles, but at Landroid we strongly recommend changing the oil every 6,000 miles to protect the turbo and camshaft.

• Timing system: Duplex Chain-driven (no cambelt to snap).




Upgrading and Remapping: The TD5's Secret Weapon

Unlike the mechanical 200Tdi and 300Tdi, the TD5's Thunder ECU makes it highly receptive to tuning. A proper Stage 1 remap, combined with an upgraded intercooler and EGR bypass, can safely transform the vehicle - boosting power to around 160hp and significantly improving low-end torque for towing and overtaking, all without compromising reliability.

Final Thoughts: Why Landroid Still Loves the TD5

Here at Landroid, the TD5 holds a special place in our workshop and our hearts. It represents a turning point in Land Rover’s story, the moment when rugged tradition met smart engineering. Though replaced by Ford’s TDCi units in 2007, the TD5 remains a favorite among enthusiasts, and a cornerstone of many of our Defender restoration projects.

Its legacy goes beyond emissions and power figures, it’s about evolution, capability, and staying true to the Defender spirit in a fast changing world.
